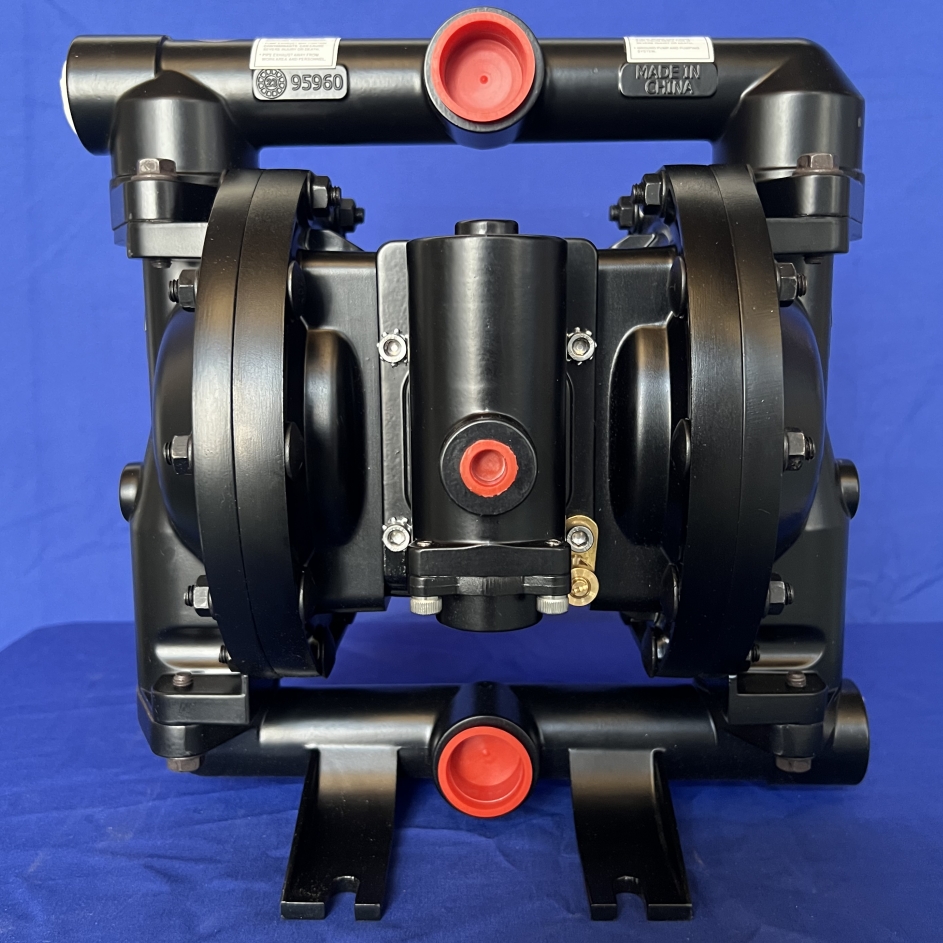

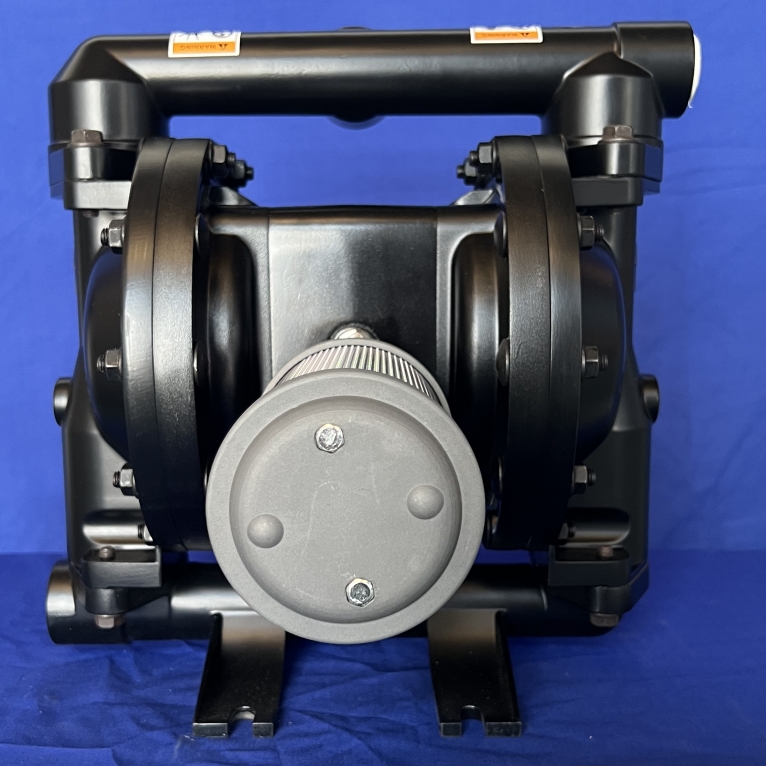

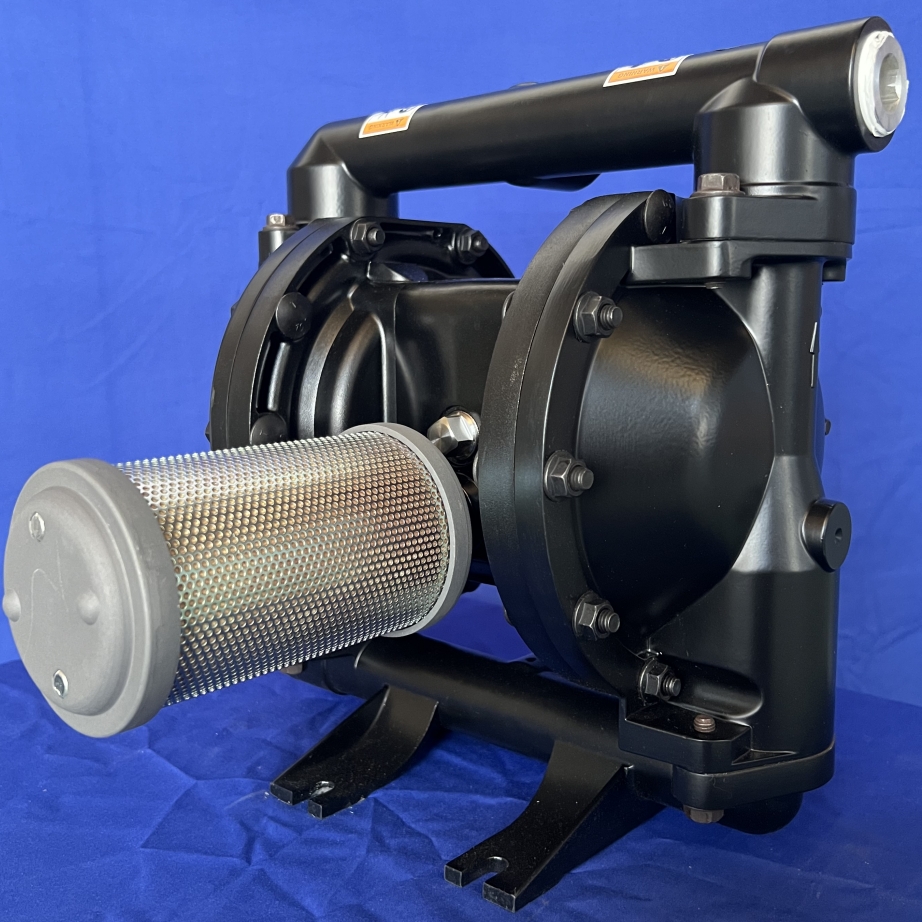

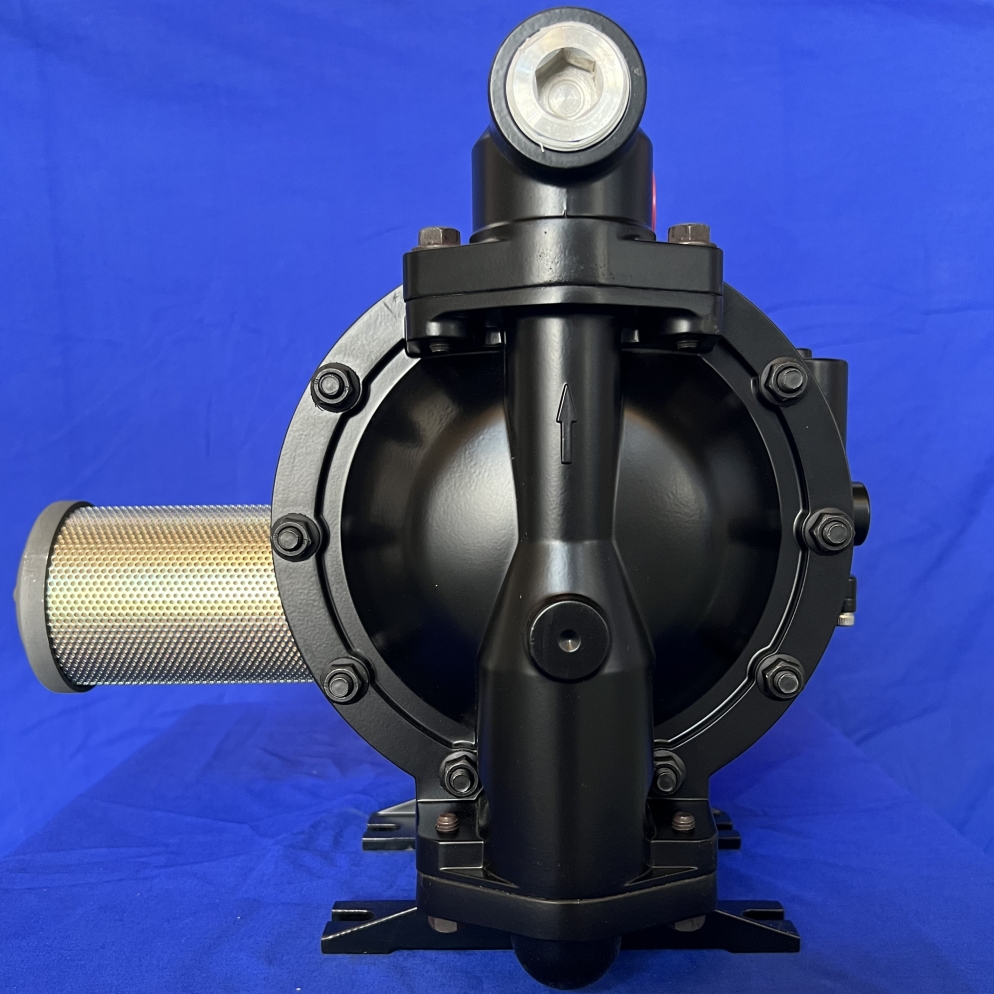

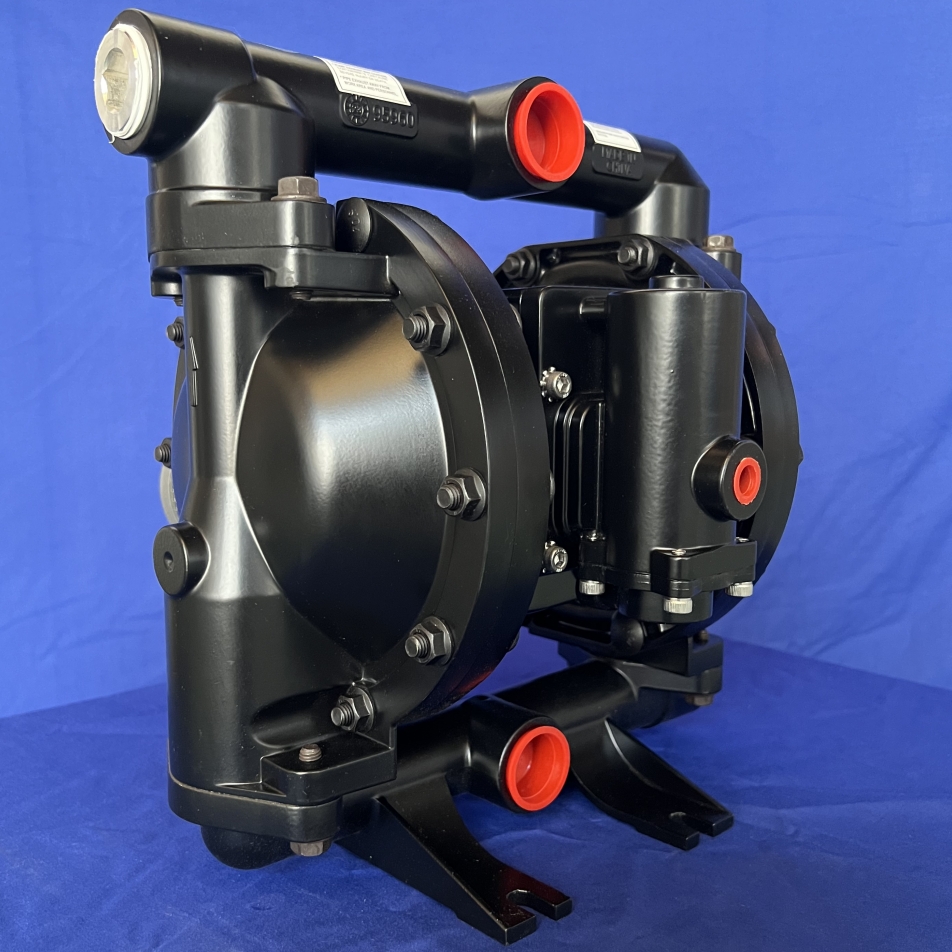

1 Inch WB Metallic Diaphragm Pump

1" WB Metallic Diaphragm Pump;
Flow rates is up to 52.2 GPM (197.6 LPM)

1" WB Metallic Air Operated Double Diaphragm Pump

视频按钮图标.jpgWatch The Video Of 1" WB Aluminum Pump

1” WB metallic diaphragm pumps achieve flow rates of up to 52.2 GPM (197.6 LPM) and offer a wide range of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Industrial, Chemical and Petrochemical markets.



  • Mobility - Compact, rugged design allows for easy mobility

  • Efficiency - Pilot provides ultra-positive, reliable shift signal

  • Reliability - no-stall operation

  • Versatility - Available in aluminum, cast iron or stainless steel to withstand tough chemical applications

  • Environmentally Sound - Bolted construction for leak-free fluid handling

Pump Casing Materials


Cast Iron

Stainless Steel

Diaphragm Materials

  • PTFE

  • Santoprene

  • Hytrel

  • Nitrile

  • Viton

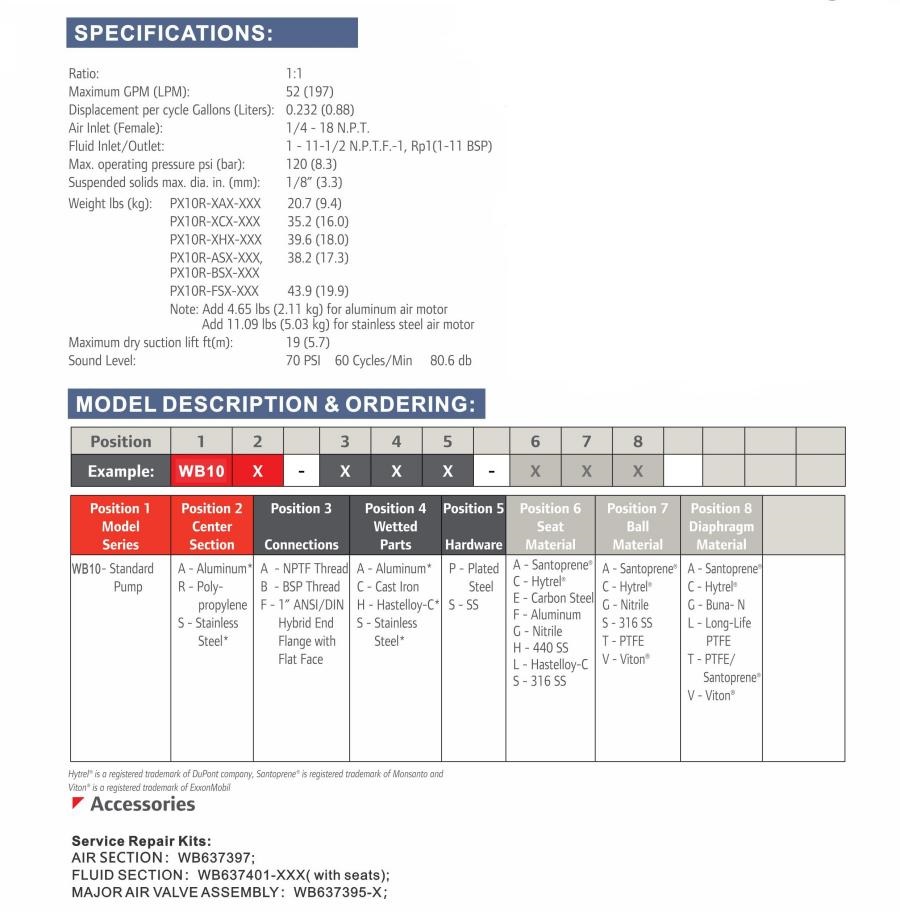

1inch WB METALLIC Models 01.jpg

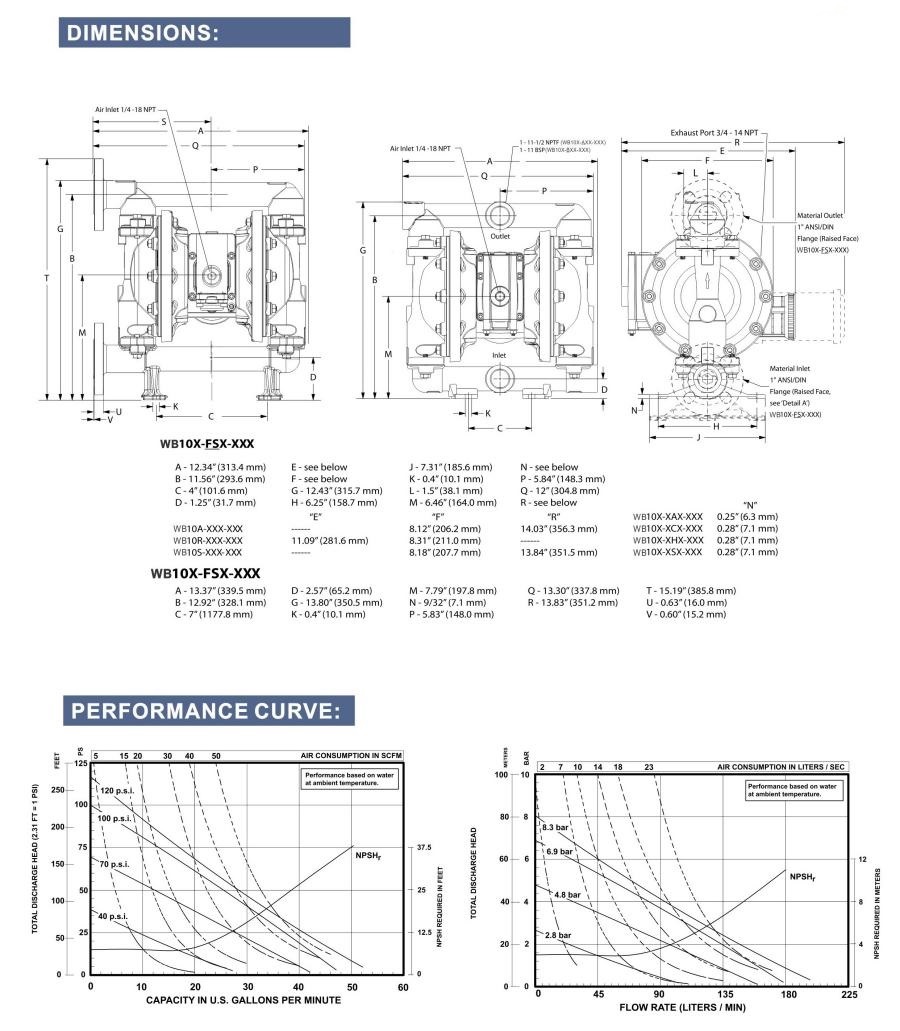

1 inch WB METALLIC Models 02.jpg
