3 Inch WB Metallic Diaphragm Pump

3" WB Metallic Diaphragm Pump;
Flow rates is up to 275GPM(1041 LPM)

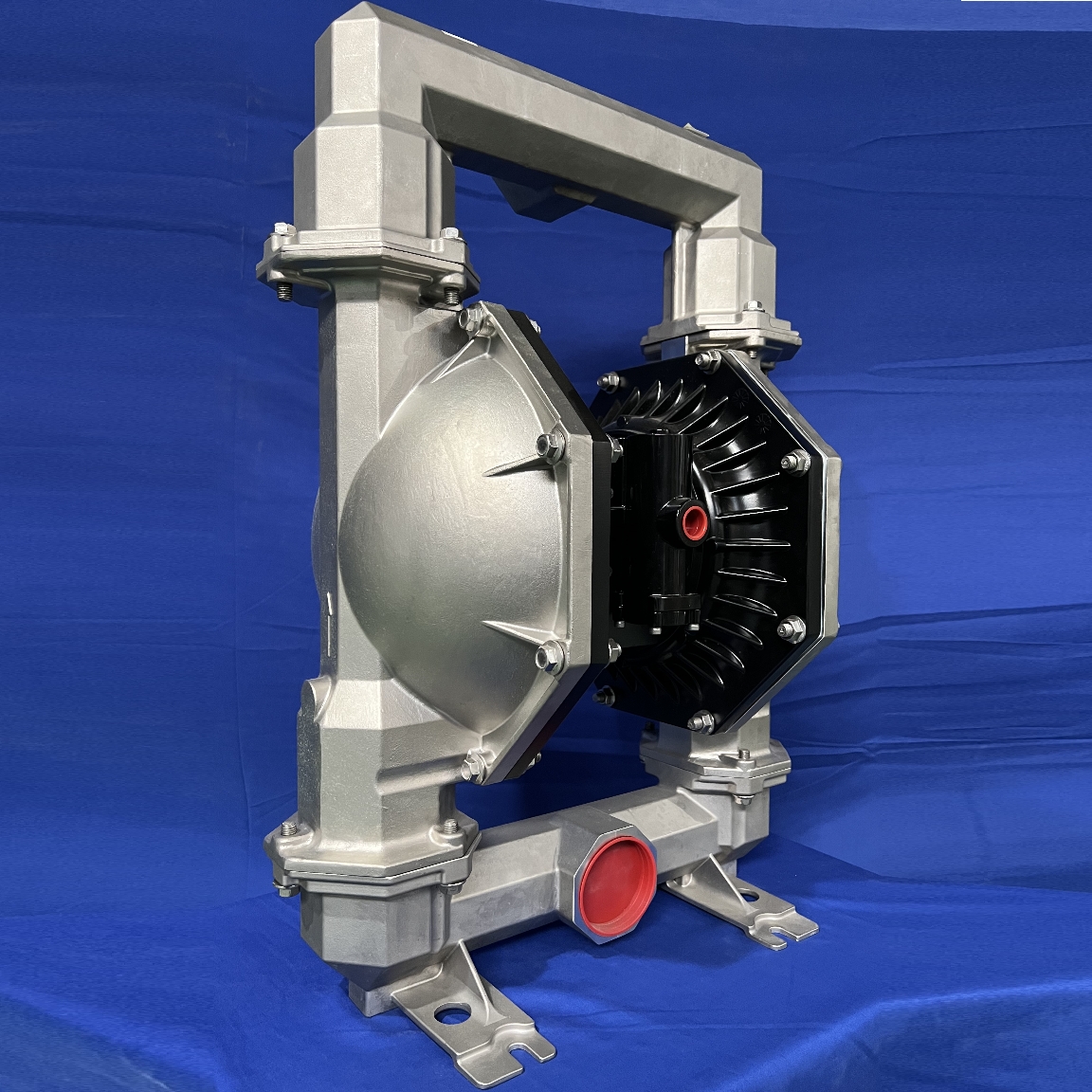

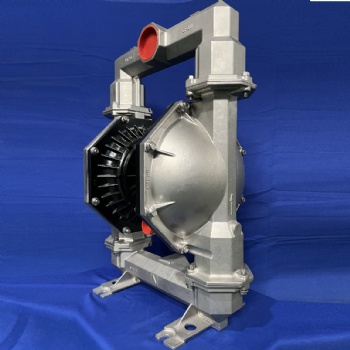

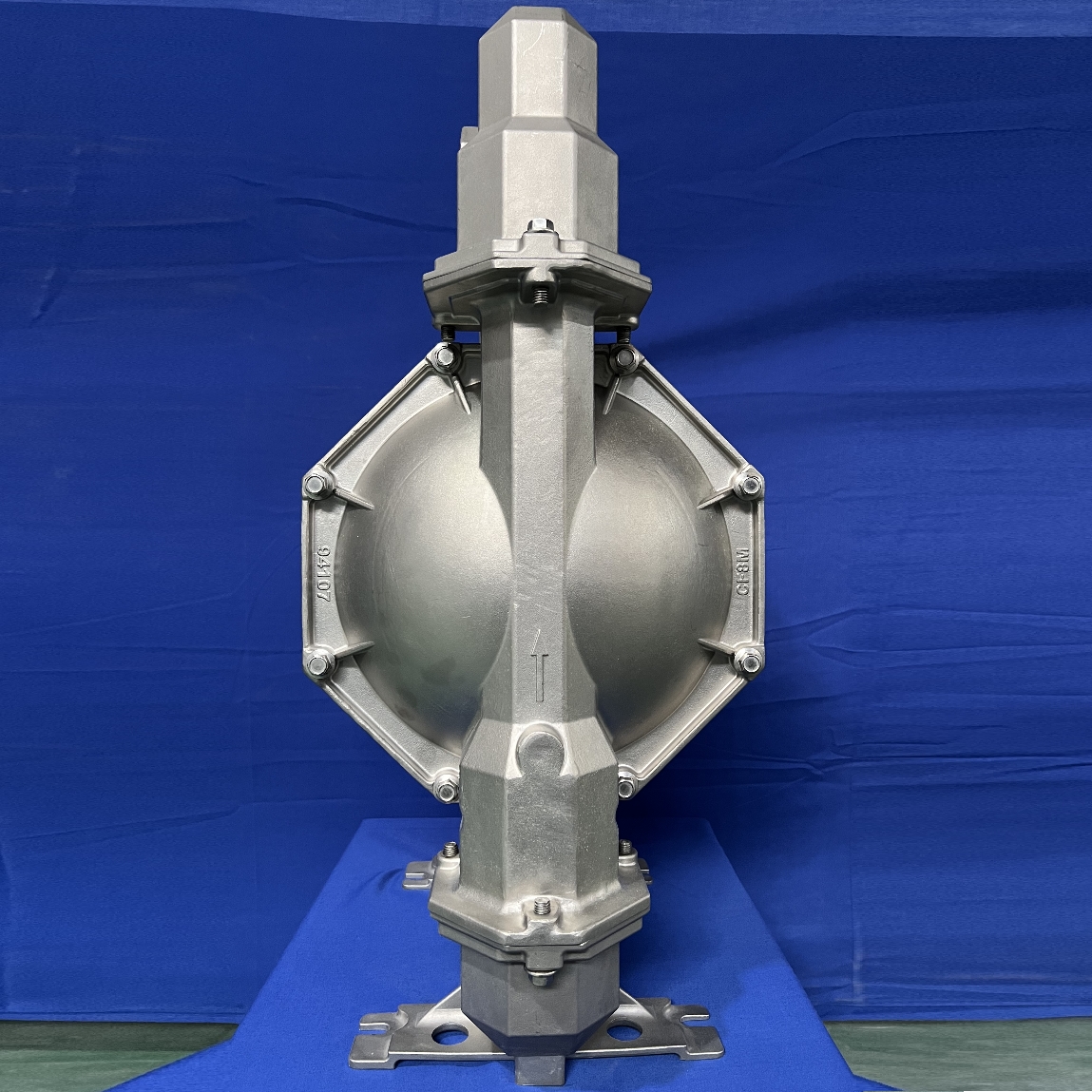

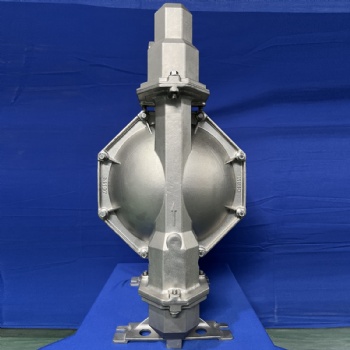

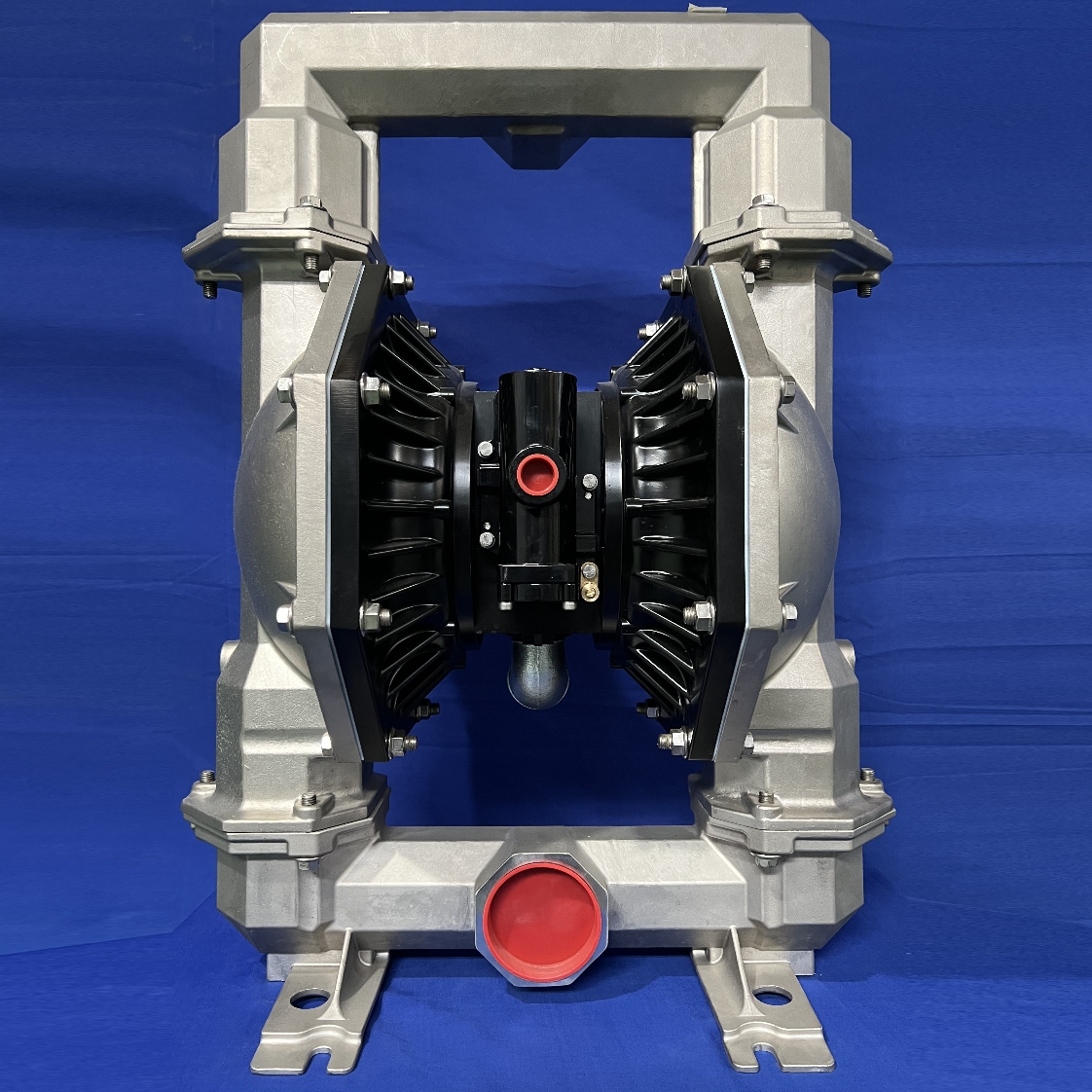

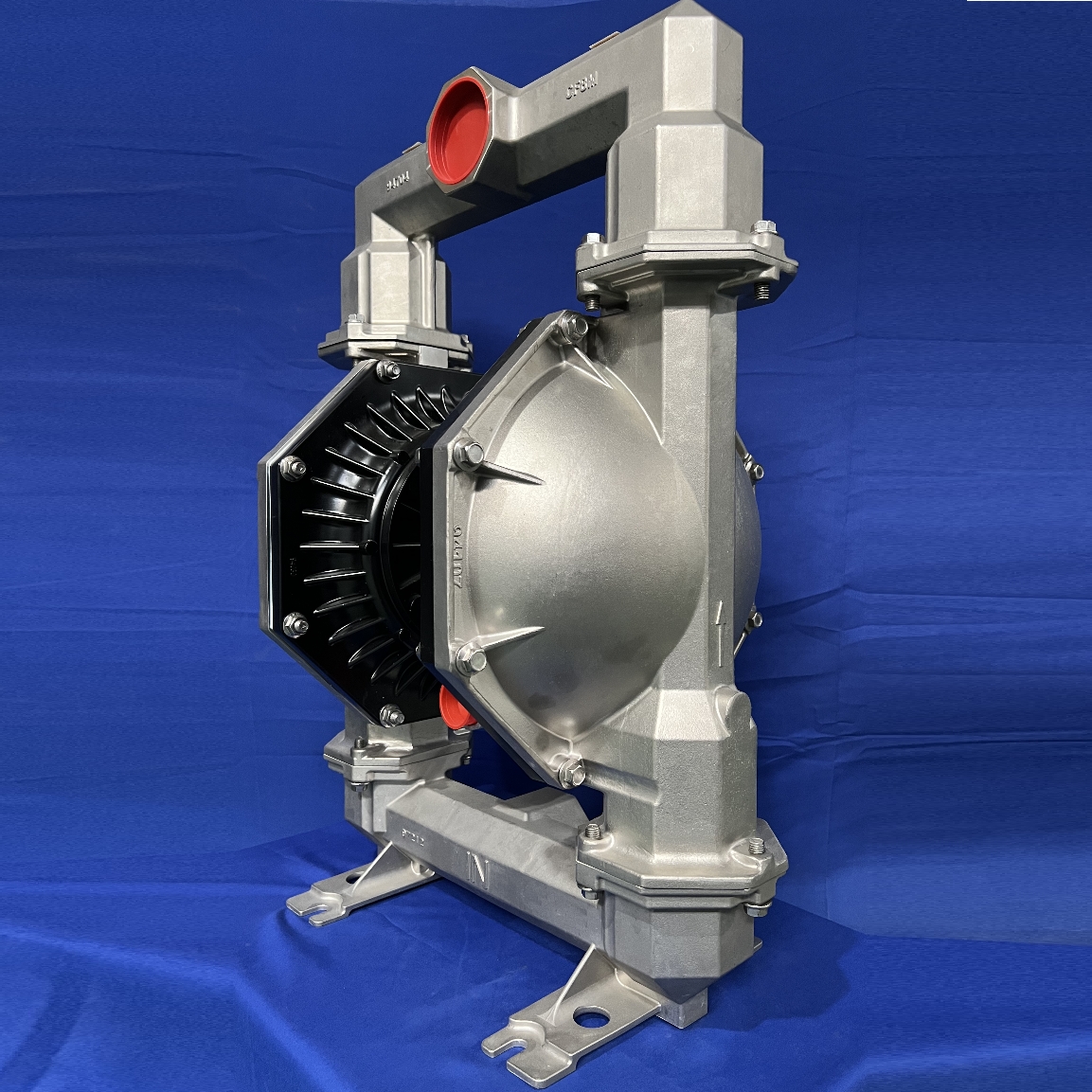

3" WB Metallic Air Operated Double Diaphragm Pump


视频按钮图标.jpgWatch The Video Of 3" WB Stainless Steel Pump


3” WB metallic diaphragm pumps achieve flow rates of up to 275GPM(1041 LPM) and offer a wide range of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Industrial, Chemical and Petrochemical markets.


FEATURES AND ADVANTAGES:

Features

  • Mobility - Compact, rugged design allows for easy mobility

  • Efficiency - Pilot provides ultra-positive, reliable shift signal

  • Reliability - no-stall operation

  • Versatility - Available in aluminum, cast iron or stainless steel to withstand tough chemical applications

  • Environmentally Sound - Bolted construction for leak-free fluid handling


Pump Casing Materials

Aluminum

Cast Iron

Stainless Steel


Diaphragm Materials

  • PTFE

  • Santoprene

  • Hytrel

  • Nitrile

  • Viton

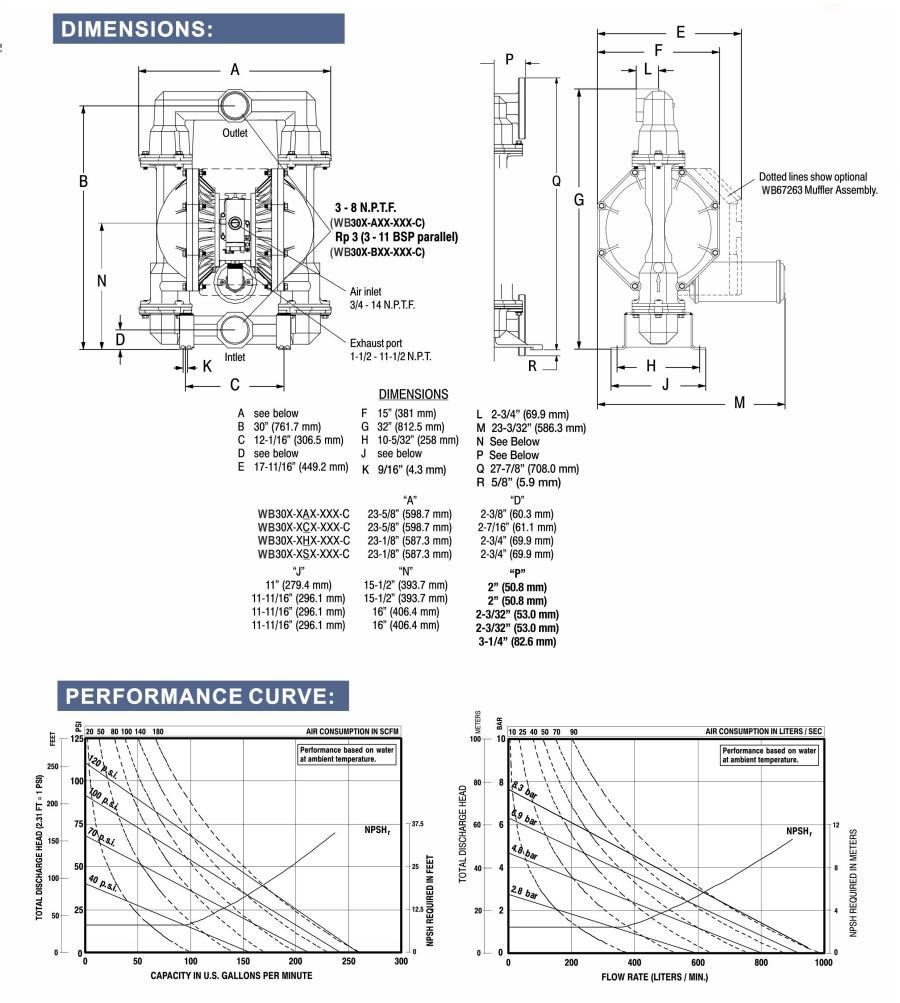

3 inch WB METALLIC Models 01.jpg

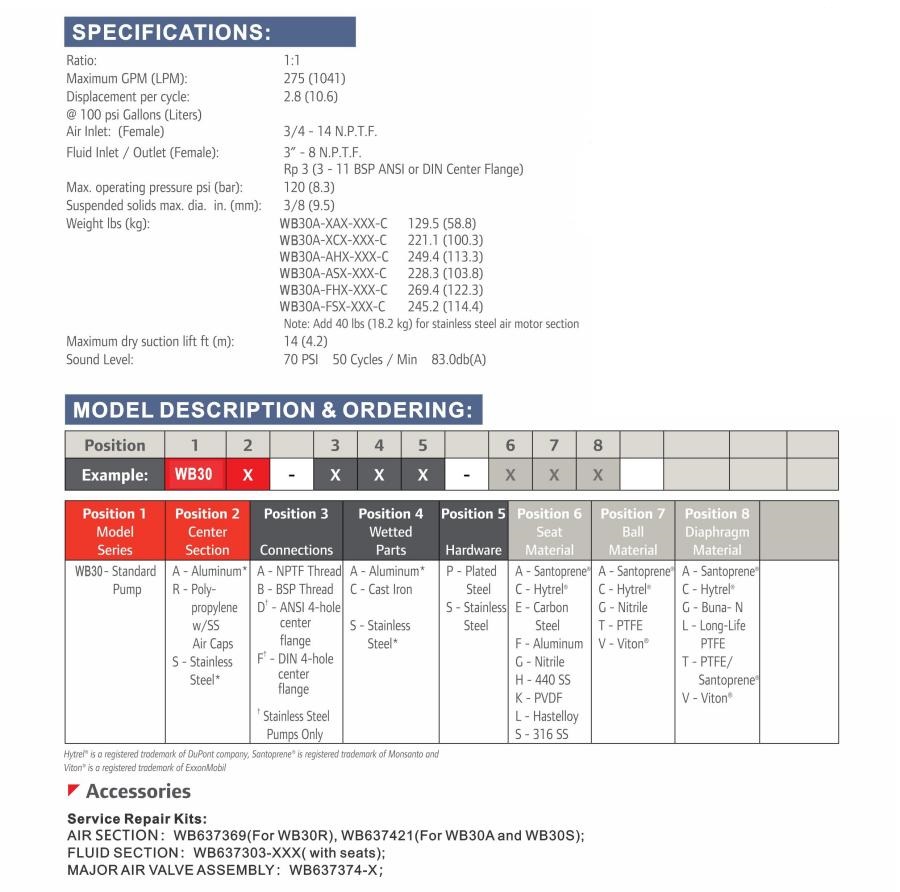

3 inch WB METALLIC Models 02.jpg
